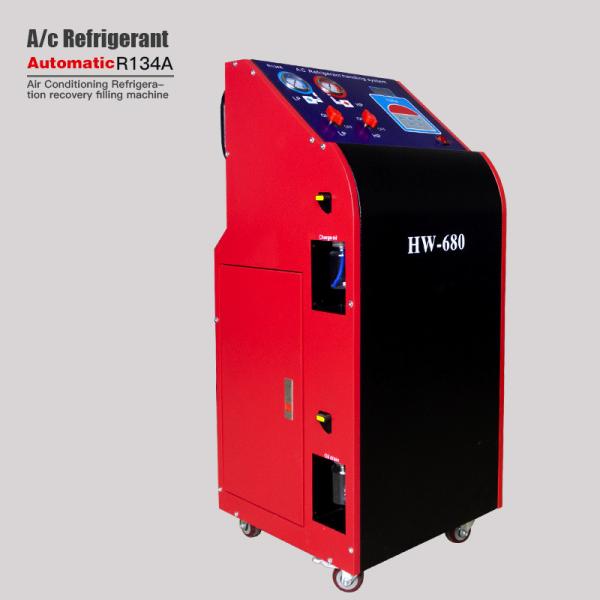

5.4m3/H Huawei 680 Portable AC Recovery Machine 60Hz AC Machine R134A

HW-680 Car Ac Refrigerant Recovery Machine

Product instruction

This machine has powerfule compressors , and it can recover the old refrigerant from auto air-conditioning systems.
Equipped with high efficiency filtration systems .

This is a refrigerant recoverying/recycling/recharging equipment design for R134a A/C system .

Automatic operation , after parameter setting and pipeline connection , the whole process is automatically completed , without the operator valve or other manual parts .

Technical parameter:

Power:220-240V/50/60Hz

Imported compressor:3/8hp

Recovery ability:400g/min

Charging ablity:1000g/min

Vacuum pumb ability:5.4^m3/h

Net weight:75kg

Dimension:680*760*1260mm

Storage tank capacity:12kg

Accuracy of electronic scale:±1g

Features

1 . Recovery: Recover R134a from the car , and purify it before store it in the machine

2 . Vacuuming

3 . Charging

4 . Operation will show step by step, easy to understand

Advantages

​Simple pipeline connection . Operation starts once the hose of the machine is connected to the interface of the air conditioner yet to betested .

​With imported brand compressor to make efficiently ensures recovery of used refrigerant .

​Compact construction and parts versatility help reapair and maintenance .

5.4m3/H Portable AC Recovery Machine

Huawei 680 Portable AC Recovery Machine

60Hz AC Machine R134A

5.4m3/H Huawei 680 Portable AC Recovery Machine 60Hz AC Machine R134A Images
